The ultimate solution to measure anilox rollers, gravure cylinders, flexo printing plates & embossing rollers.
As a leading supplier of innovative solutions for the printing industry, we are excited to present the revolutionary DotScope Microscope range, including the DotScope Mini 3D, DotScope Eco, and DotScope Mini 2D. These cutting-edge devices are specifically designed to cater to the unique needs of the printing industry, allowing precise measurements of anilox rollers, gravure cylinders, flexo printing plates, embossing rollers, tactile print, and perforations.
The DotScope Microscopes are distinguished by their exceptional ease-of-use, accuracy, and efficiency, making them the perfect choice for professionals in the printing industry. With the powerful combination of high-performance optics, advanced software, and compact designs, these devices deliver unparalleled results, streamlining your workflow and enhancing productivity.
At Daetwyler UK, we understand the importance of reliable support, which is why we have our dedicated DotScope Manager, David Lunn, available for site visits, online demos, and training. David’s expertise and experience will ensure you get the most out of your DotScope Microscope, enabling you to achieve the best possible outcomes for your business.
Explore our comprehensive range of DotScope Microscopes and discover how they can revolutionise your printing processes. Trust Daetwyler UK to provide you with the perfect solution for all your precision measurement needs in the printing industry.
Bespoke microscopes also available, please contact us for more information using the form below.
DotScope mini
The DotScope Mini 3D offers a new standard in mobile 3D microscopy, enabling effortless generation of 3D views and measurements for microscopic structures. Its key features include:
- Simple Operation: Position the tool and click the measurement button for rapid 3D model creation.
- Fast Measurements: Typical measurements take just 15-20 seconds, minimising external vibration impact.
- On-device Controls: Focus knob and control buttons allow for quick adjustments and streamlined operation.
- Integrated XY Adjustment: Precisely navigate print form details with ease.
- Nosepiece with Three Lenses: Rapidly switch between lenses for an overview or detailed accuracy.
- Unmatched Mobility: Compact, lightweight, and robust design, requiring only a USB connection for high mobility and extended usage.
The DotScope Mini 3D is perfect for the printing industry, providing unparalleled mobility and precision for 3D microscopy needs.
DotScope eco
DotScope Eco: Compact, Lightweight, and Affordable 3D Microscopy for the Printing Industry
The DotScope Eco is perhaps the smallest and most lightweight 3D microscope in the world, offering high-performance 3D functions at a budget-friendly price. Key features include:
- Pure 3D Microscopy: Delivers the same high-quality 3D functionality as the DotScope Mini.
- Software Operation: All controls are managed via the DotScope software.
- Simple Usage: Easily create 3D views and measurements of microscopic structures with just a few clicks.
- Fast Measurements: Typical measurements take just 15-20 seconds, reducing external vibration impact.
- Nosepiece with Three Lenses: Quickly switch between lenses for overview or detailed accuracy.
- Optional Magnetic Base: Allows for inline measurement of anilox rollers in installed state- ideal for corrugated printers.
- Unmatched Mobility: Compact, lightweight, and robust design, requiring only a USB connection for high mobility and extended usage.
The DotScope Eco is the perfect choice for price-sensitive areas within the printing industry, offering exceptional 3D microscopy capabilities in a compact and affordable package.
DotScope mini 2d
DotScope Mini 2D: Efficient and Productive Gravure Cylinder Measurement Solution for the Printing Industry
The DotScope Mini 2D sets a new standard in gravure printing microscopy, with components optimized for maximum productivity. Key features include:
- Enhanced Workflow: Perform measurements and store data without putting the device down, streamlining the process.
- Precise XY Adjustment: Approach print form details accurately and make measurements along a vertical line.
- Automatic Measurement: Determines engraving screen automatically and measures all cells in the image.
- Manual Measurement Options: Correct or freeze an image to measure individual details with various tools.
- Documentation and Archiving: Save/load measurements, print protocols, connect to databases, and create JPG images.
- Consistent Focal Plane: Minimal refocusing required even with changing cylinder diameters.
- Optional Z-Measurement: Available for added functionality.
- Serial Measurement: Specify layout and perform multiple measurements quickly for increased efficiency.
The DotScope Mini 2D is ideal for the printing industry, offering a highly efficient and productive solution for gravure cylinder measurement and analysis.
Who uses a DotScope?
Flexo and gravure printers
Anilox and gravure cylinder manufacturers
Anilox cleaning companies
Flexo plate manufacturers

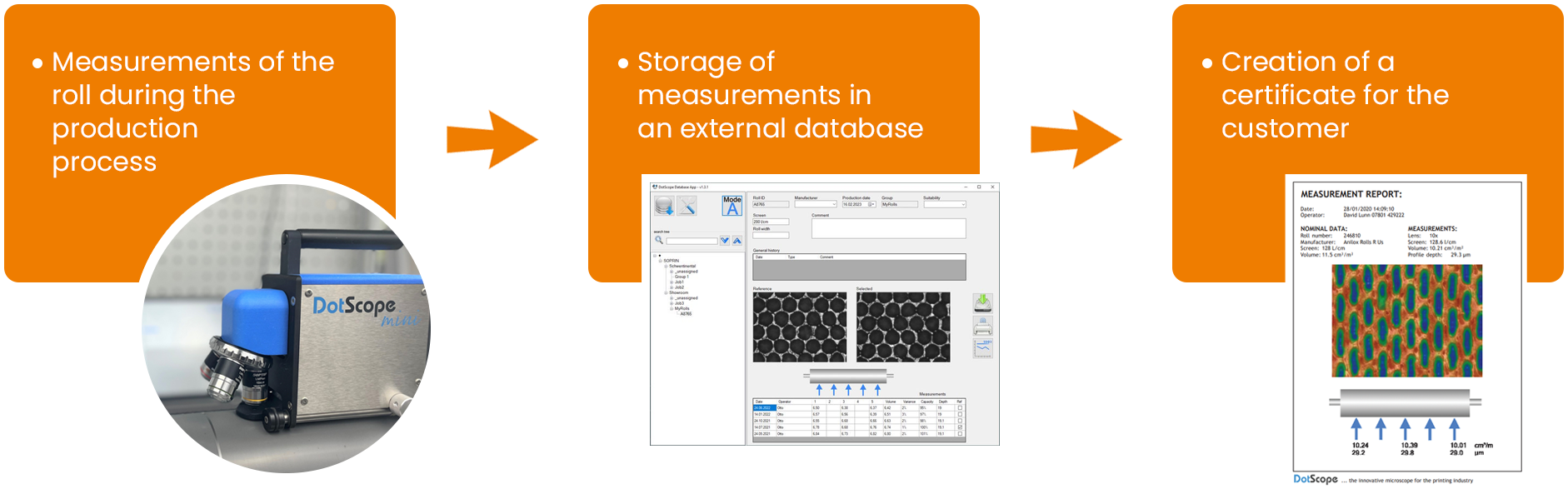

DotScope Database Application- the tool for anilox roll and gravure cylinder management
Many users of anilox rolls are faced with the task of selecting the right anilox rolls for the next printing job. The wear or cleaning status of the rolls should also be monitored. The new DotScope Database Application offers the optimal solution for this. Volume, depth and screen measurements made using a DotScope can be easily transferred to the database with one click.
DotScope reporting
With DotScope you have the possibility of displaying one or more measurements in a measurement report. A variety of designs are included:
- for single or continuous multiple measurements
- for anilox rolls with nominal and measured data

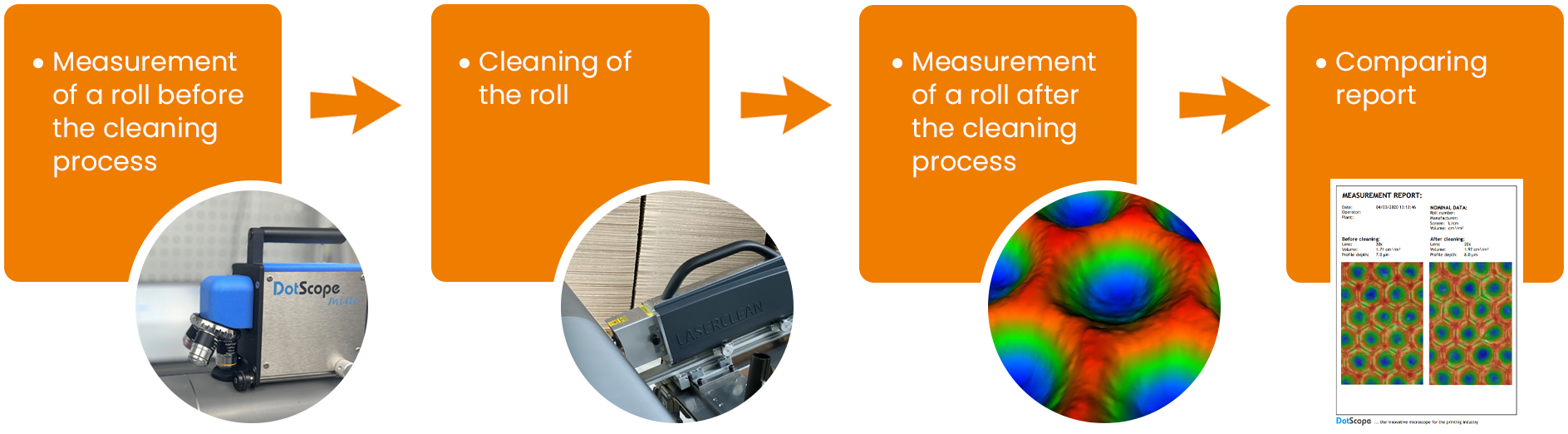

- for comparison before and after cleaning
- for flexographic printing plates
- for several measuring points on one anilox roller
- for other languages
Enquire now
If you would like one of our DotScope brochures, would like to discuss options for bespoke microscopes, would like to partner with DotScope or would like to arrange a demonstration, please fill out the form below or call us on +44(0) 1793 719202.
